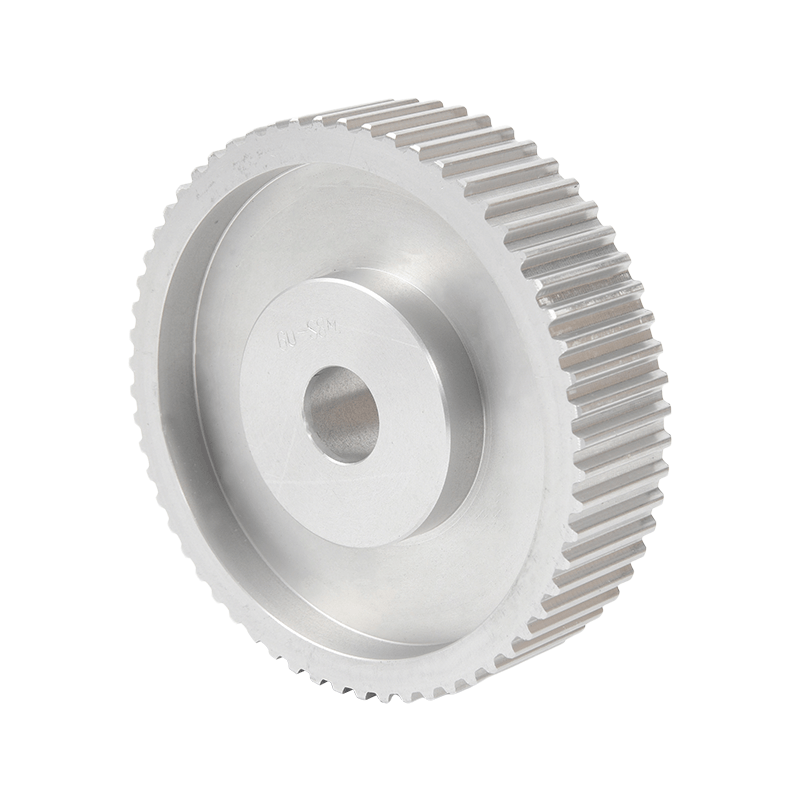

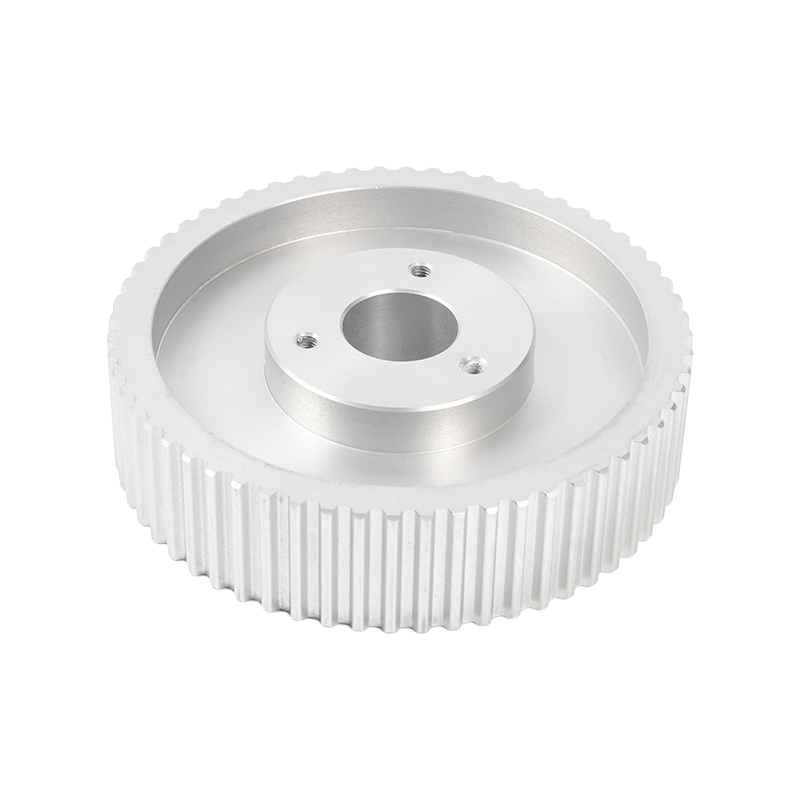

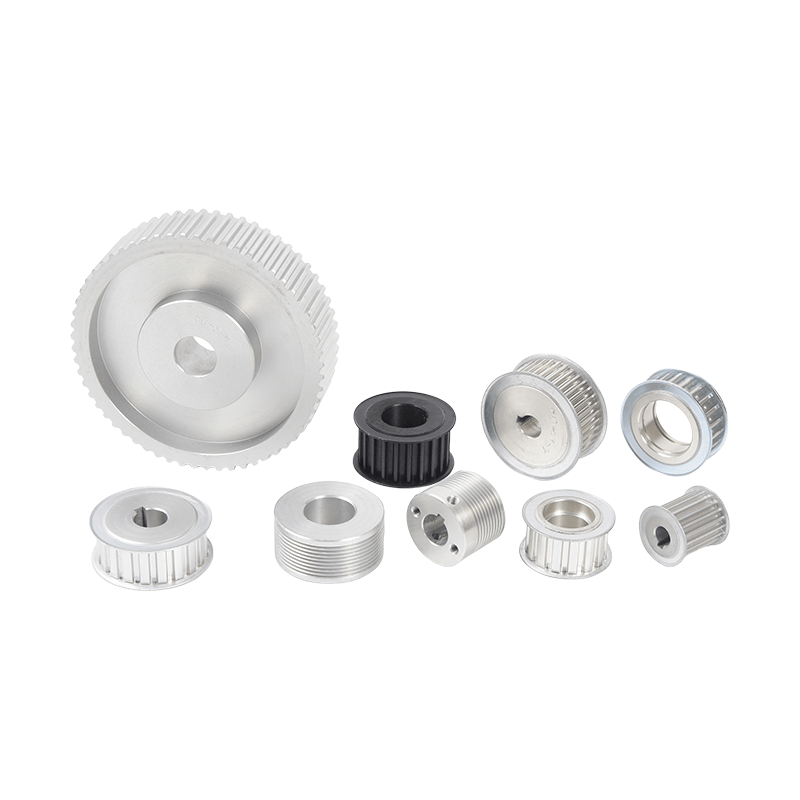

产品描述

与同步带配套，具有传动准确、平衡性好、噪音小、无滑差等特点，而且结构紧凑、适宜于多轴传动。材质有碳素钢材、铸铁、铝合金可供选择。

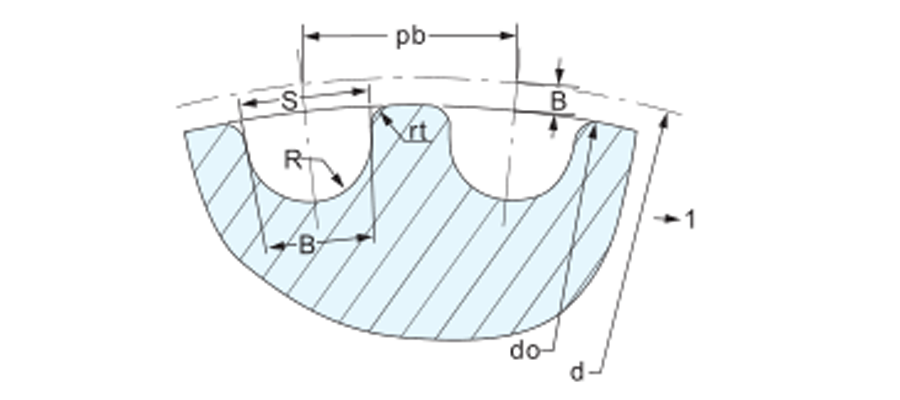

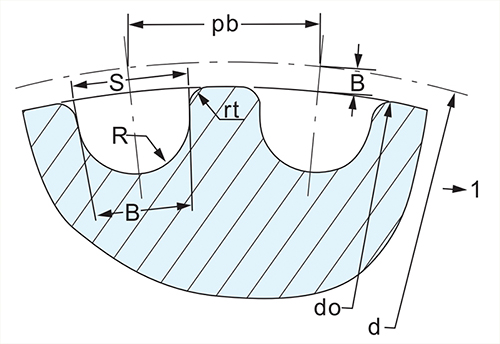

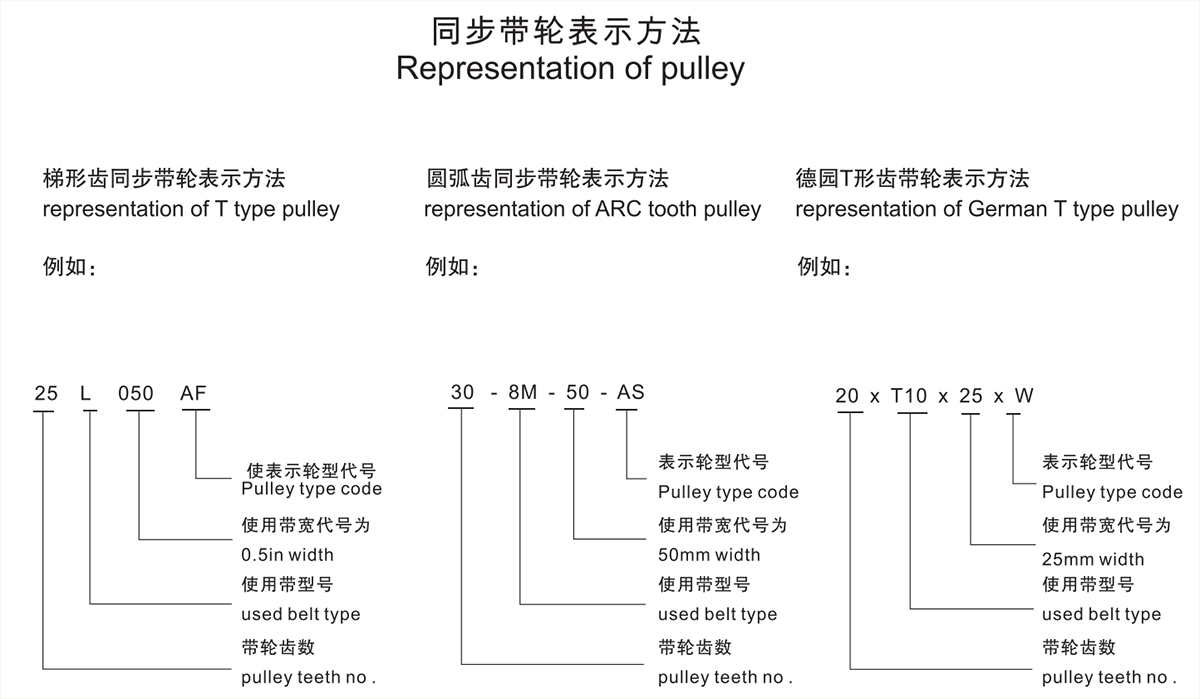

圆弧齿同步带轮齿形尺寸(单位: mm)

型号	节距	齿高	底圆半径	齿槽宽	齿顶圆半径	齿形角	两倍节顶	详情
3M	3	1.28	0.91	1.90	0.3	≈14°	0.762	详情
5M	5	2.16	1.56	3.25	0.48	≈14°	1.144	详情
8M	8	3.54	2.57	5.35	0.8	≈14°	1.372	详情
14M	14	6.20	4.65	9.80	1.4	≈14°	2.794	详情

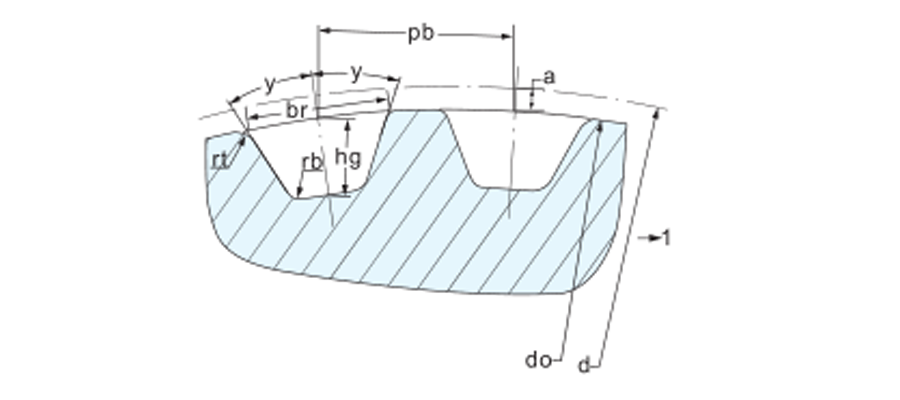

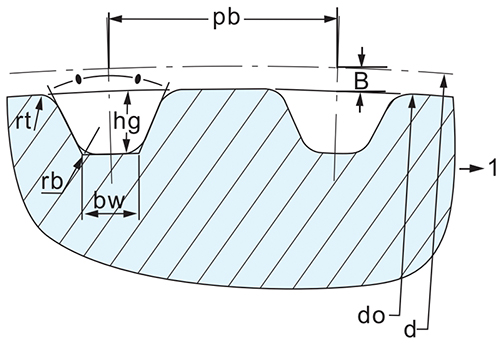

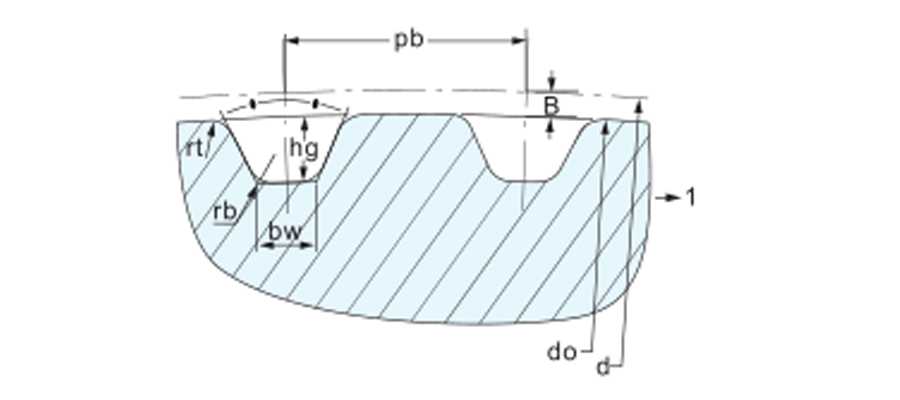

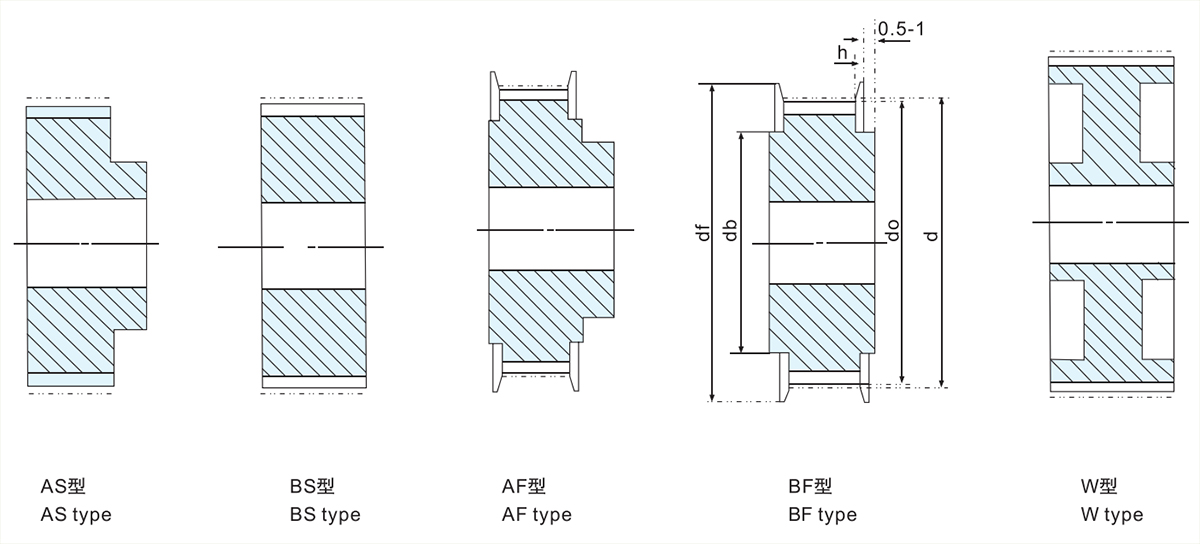

带轮直边齿形尺寸和公差(单位:mm)

节线代号	bw	hg	CP + 1.5°	rb	rt	2a	详情
MXL	0.84±0.05	0.69	20	0.35	0.13	0.508	详情
XXL	1.14±0.05	0.84	25	0.35	0.30	0.508	详情
XL	1.32±0.05	1.65	25	0.41	0.64	0.508	详情
L	3.05±0.10	2.67	20	1.19	1.17	0.762	详情
H	4.19±0.13	3.05	20	1.60	1.60	1.372	详情
XH	7.90±0.15	7.14	20	1.98	1.98	2.794	详情
XXH	12.17±0.18	10.31	20	3.96	3.18	3.048	详情

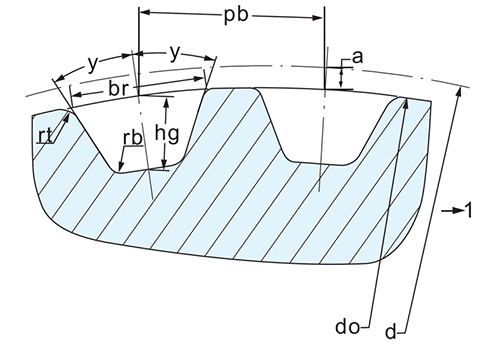

直边齿同步带轮齿形尺寸(单位: mm )

齿距代号

型号

形状

Y

Grad

br

rt

2a

详情

SE

br

N

br

SE

hg

N

hg

上下偏差

上下偏差

上下偏差

mix

±.15°

max

上下偏差

T2.5

1.75

+0.05

0

1.83

+0.05

0

0.75

+0.05

0

1

25

0.2

0.3

+0.05

0

0.6

T5

2.96

+0.05

0

3.32

+0.05

0

1.25

+0.05

0

1.95

25

0.4

0.6

+0.05

0

1

T10

6.02

+0.1

0

6.57

+0.1

0

2.6

+0.1

0

3.4

25

0.6

0.8

+0.1

0

2

T20

11.65

+0.15

0

12.6

+0.15

0

5.2

+0.13

0

6

25

0.8

1.2

+0.1

0

3
